Predict User Churn on Gaming Apps with Google Analytics Data using BigQuery ML

User retention can be a major challenge for mobile game developers. According to the Mobile Gaming Industry Analysis in 2019, most mobile games only see a 25% retention rate for users after the first day. To retain a larger percentage of users after their first use of an app, developers can take steps to motivate and incentivize certain users to return. But to do so, developers need to identify the propensity of any specific user returning after the first 24 hours.

In this blog post, we will discuss how you can use BigQuery ML to run propensity models on Google Analytics 4 data from your gaming app to determine the likelihood of specific users returning to your app.

You can also use the same end-to-end solution approach in other types of apps using Google Analytics for Firebase as well as apps and websites using Google Analytics 4. To try out the steps in this blogpost or to implement the solution for your own data, you can use this Jupyter Notebook.

Using this blog post and the accompanying Jupyter Notebook, you’ll learn how to:

  • Explore the BigQuery export dataset for Google Analytics 4
  • Prepare the training data using demographic and behavioural attributes
  • Train propensity models using BigQuery ML
  • Evaluate BigQuery ML models
  • Make predictions using the BigQuery ML models
  • Implement model insights in practical implementations

Google Analytics 4 (GA4) properties unify app and website measurement on a single platform and are now default in Google Analytics. Any business that wants to measure their website, app, or both, can use GA4 for a more complete view of how customers engage with their business. With the launch of Google Analytics 4, BigQuery export of Google Analytics data is now available to all users. If you are already using a Google Analytics 4 property, you can follow this guide to set up exporting your GA data to BigQuery.

Once you have set up the BigQuery export, you can explore the data in BigQuery. Google Analytics 4 uses an event-based measurement model. Each row in the data is an event with additional parameters and properties. The Schema for BigQuery Export can help you to understand the structure of the data.

In this blogpost, we use the public sample export data from an actual mobile game app called “Flood It!” (Android, iOS) to build a churn prediction model. But you can use data from your own app or website.

Here’s what the data looks like. Each row in the dataset is a unique event, which can contain nested fields for event parameters.

  SELECT *
FROM `firebase-public-project.analytics_153293282.events_*`
TABLESAMPLE SYSTEM (1 PERCENT)
table

This dataset contains 5.7M events from over 15k users.

  SELECT
    COUNT(DISTINCT user_pseudo_id) as count_distinct_users,
    COUNT(event_timestamp) as count_events
FROM
  `firebase-public-project.analytics_153293282.events_*
count

Our goal is to use BigQuery ML on the sample app dataset to predict propensity to user churn or not churn based on users’ demographics and activities within the first 24 hours of app installation.

data

In the following sections, we’ll cover how to:

  1. Pre-process the raw event data from GA4
    1. Identify users & the label feature
    2. Process demographic features
    3. Process behavioral features
  2. Train classification model using BigQuery ML
  3. Evaluate the model using BigQueryML
  4. Make predictions using BigQuery ML
  5. Utilize predictions for activation

Pre-process the raw event data

You cannot simply use raw event data to train a machine learning model as it would not be in the right shape and format to use as training data. So in this section, we’ll go through how to pre-process the raw data into an appropriate format to use as training data for classification models.

This is what the training data should look like for our use case at the end of this section:

user id

Notice that in this training data, each row represents a unique user with a distinct user ID (user_pseudo_id).

Identify users & the label feature

We first filtered the dataset to remove users who were unlikely to return the app anyway. We defined these ‘bounced’ users as ones who spent less than 10 mins with the app. Then we labeled all remaining users:

  • churned: No event data for the user after 24 hours of first engaging with the app.
  • returned: The user has at least one event record after 24 hours of first engaging with the app.

For your use case, you can have a different definition of bounce and churning. Also you can even try to predict something else other than churning, e.g.:

  • whether a user is likely to spend money on in-game currency
  • likelihood of completing n-number of game levels
  • likelihood of spending n amount of time in-game etc.

In such cases, label each record accordingly so that whatever you are trying to predict can be identified from the label column.

From our dataset, we found that ~41% users (5,557) bounced. However, from the remaining users (8,031),  ~23% (1,883) churned after 24 hours:

  SELECT
    bounced,
    churned,
    COUNT(churned) as count_users
FROM
    bqmlga4.returningusers
GROUP BY 1,2
ORDER BY bounced
boucned

To create these bounced and churned columns, we used the following snippet of SQL code.

  ...
#churned = 1 if last_touch within 24 hr of app installation, else 0
IF (user_last_engagement < TIMESTAMP_ADD(user_first_engagement,
      INTERVAL 24 HOUR),
    1,
    0 ) AS churned,
#bounced = 1 if last_touch within 10 min, else 0
IF (user_last_engagement <= TIMESTAMP_ADD(user_first_engagement,
      INTERVAL 10 MINUTE),
    1,
    0 ) AS bounced,
...

You can view the Jupyter Notebook for the full query used for materializing the bounced and churned labels.

Process demographic features

Next, we added features both for demographic data and for behavioral data spanning across multiple columns. Having a combination of both demographic data and behavioral data helps to create a more predictive model.

We used the following fields for each user as demographic features:

  • geo.country
  • device.operating_system
  • device.language

A user might have multiple unique values in these fields — for example if a user uses the app from two different devices. To simplify, we used the values from the very first user engagement event.

  CREATE OR REPLACE VIEW bqmlga4.user_demographics AS (
  WITH first_values AS (
      SELECT
          user_pseudo_id,
          geo.country as country,
          device.operating_system as operating_system,
          device.language as language,
          ROW_NUMBER() OVER (PARTITION BY user_pseudo_id ORDER BY event_timestamp DESC) AS row_num
      FROM `firebase-public-project.analytics_153293282.events_*`
      WHERE event_name="user_engagement"
      )
  SELECT * EXCEPT (row_num)
  FROM first_values
  WHERE row_num = 1 #first engagement
);

Process behavioral features

There is additional demographic information present in the GA4 export dataset, e.g. app_info, device, event_params, geo etc. You may also send demographic information to Google Analytics through each hit via user_properties. Furthermore, if you have first-party data on your own system, you can join that with the GA4 export data based on user_ids.

To extract user behavior from the data, we looked into the user’s activities within the first 24 hours of first user engagement. In addition to the events automatically collected by Google Analytics, there are also the recommended events for games that can be explored to analyze user behavior. For our use case, to predict user churn, we counted the number of times the follow events were collected for a user within 24 hours of first user engagement:

  • user_engagement
  • level_start_quickplay
  • level_end_quickplay
  • level_complete_quickplay
  • level_reset_quickplay
  • post_score
  • spend_virtual_currency
  • ad_reward
  • challenge_a_friend
  • completed_5_levels
  • use_extra_steps

The following query shows how these features were calculated:

  WITH
  events_first24hr AS (
    SELECT
      e.*
    FROM
      `firebase-public-project.analytics_153293282.events_*` e
    JOIN
      bqmlga4.returningusers r
      ON
        e.user_pseudo_id = r.user_pseudo_id
    WHERE
      TIMESTAMP_MICROS(e.event_timestamp) <= r.ts_24hr_after_first_engagement
  )
SELECT
  user_pseudo_id,
  SUM(IF(event_name = 'user_engagement', 1, 0)) AS cnt_user_engagement,
  # ... repeated for all behavior data ...
  SUM(IF(event_name = 'use_extra_steps', 1, 0)) AS cnt_use_extra_steps,
FROM
  events_first24hr
GROUP BY
  1

View the notebook for the query used to aggregate and extract the behavioral data. You can use different sets of events for your use case. To view the complete list of events, use the following query:

  SELECT
    event_name,
    COUNT(event_name) as event_count
FROM
    `firebase-public-project.analytics_153293282.events_*`
GROUP BY 1
ORDER BY
   event_count DESC

After this we combined the features to ensure our training dataset reflects the intended structure. We had the following columns in our table:

  • User ID:
    • user_pseudo_id
  • Label:
    • churned
  • Demographic features
    • country
    • device_os
    • device_language
  • Behavioral features
    • cnt_user_engagement
    • cnt_level_start_quickplay
    • cnt_level_end_quickplay
    • cnt_level_complete_quickplay
    • cnt_level_reset_quickplay
    • cnt_post_score
    • cnt_spend_virtual_currency
    • cnt_ad_reward
    • cnt_challenge_a_friend
    • cnt_completed_5_levels
    • cnt_use_extra_steps
    • user_first_engagement

At this point, the dataset was ready to train the classification machine learning model in BigQuery ML. Once trained, the model will output a propensity score between churn (churned=1) or return (churned=0) indicating the probability of a user churning based on the training data.

Train classification model

When using the CREATE MODEL statement, BigQuery ML automatically splits the data between training and test. Thus the model can be evaluated immediately after training (see the documentation for more information).

For the ML model, we can choose among the following classification algorithms where each type has its own pros and cons:

model

Often logistic regression is used as a starting point because it is the fastest to train. The query below shows how we trained the logistic regression classification models in BigQuery ML.

  CREATE OR REPLACE MODEL bqmlga4.churn_logreg
TRANSFORM(
  EXTRACT(MONTH from user_first_engagement) as month,
  EXTRACT(DAYOFYEAR from user_first_engagement) as julianday,
  EXTRACT(DAYOFWEEK from user_first_engagement) as dayofweek,
  EXTRACT(HOUR from user_first_engagement) as hour,
  * EXCEPT(user_first_engagement, user_pseudo_id)
)
OPTIONS(
  MODEL_TYPE="LOGISTIC_REG",
  INPUT_LABEL_COLS=["churned"]
) AS
SELECT
  *
FROM
  bqmlga4.train

We extracted month, julianday, and dayofweek  from datetimes/timestamps as one simple example of additional feature preprocessing before training. Using TRANSFORM() in your CREATE MODEL query allows the model to remember the extracted values. Thus, when making predictions using the model later on, these values won’t have to be extracted again. View the notebook for the example queries to train other types of models (XGBoost, deep neural network, AutoML Tables).

Evaluate model

Once the model finished training, we ran ML.EVALUATE to generate precision, recall, accuracy and f1_score for the model:

  SELECT
  *
FROM
  ML.EVALUATE(MODEL bqmlga4.churn_logreg)
row

The optional THRESHOLD parameter can be used to modify the default classification threshold of 0.5. For more information on these metrics, you can read through the definitions on precision and recall, accuracy, f1-score, log_loss and roc_auc. Comparing the resulting evaluation metrics can help to decide among multiple models.Furthermore, we used a confusion matrix to inspect how well the model predicted the labels, compared to the actual labels. The confusion matrix is created using the default threshold of 0.5, which you may want to adjust to optimize for recall, precision, or a balance (more information here).

  SELECT
  expected_label,
  _0 AS predicted_0,
  _1 AS predicted_1
FROM
  ML.CONFUSION_MATRIX(MODEL bqmlga4.churn_logreg)
expected

This table can be interpreted in the following way:

actual

Make predictions using BigQuery ML

Once the ideal model was available, we ran ML.PREDICT to make predictions. For propensity modeling, the most important output is the probability of a behavior occurring. The following query returns the probability that the user will return after 24 hrs. The higher the probability and closer it is to 1, the more likely the user is predicted to return, and the closer it is to 0, the more likely the user is predicted to churn.

  SELECT
  user_pseudo_id,
  returned,
  predicted_returned,
  predicted_returned_probs[OFFSET(0)].prob as probability_returned
FROM
  ML.PREDICT(MODEL bqmlga4.churn_logreg,
  (SELECT * FROM bqmlga4.train)) #can be replaced with a proper test dataset

Utilize predictions for activation

Once the model predictions are available for your users, you can activate this insight in different ways. In our analysis, we used user_pseudo_id as the user identifier. However, ideally, your app should send back the user_id from your app to Google Analytics. In addition to using first-party data for model predictions, this will also let you join back the predictions from the model into your own data.

  • You can import the model predictions back into Google Analytics as a user attribute. This can be done using the Data Import feature for Google Analytics 4. Based on the prediction values you can Create and edit audiences and also do Audience targeting. For example, an audience can be users with prediction probability between 0.4 and 0.7, to represent users who are predicted to be “on the fence” between churning and returning.
  • For Firebase Apps, you can use the Import segments feature. You can tailor user experience by targeting your identified users through Firebase services such as Remote Config, Cloud Messaging, and In-App Messaging. This will involve importing the segment data from BigQuery into Firebase. After that you can send notifications to the users, configure the app for them, or follow the user journeys across devices.
  • Run targeted marketing campaigns via CRMs like Salesforce, e.g. send out reminder emails.

You can find all of the code used in this blogpost in the Github repository:

https://github.com/GoogleCloudPlatform/analytics-componentized-patterns/tree/master/gaming/propensity-model/bqml

What’s next?

Continuous model evaluation and re-training

As you collect more data from your users, you may want to regularly evaluate your model on fresh data and re-train the model if you notice that the model quality is decaying.

Continuous evaluation—the process of ensuring a production machine learning model is still performing well on new data—is an essential part in any ML workflow. Performing continuous evaluation can help you catch model drift, a phenomenon that occurs when the data used to train your model no longer reflects the current environment.

To learn more about how to do continuous model evaluation and re-train models, you can read the blogpost: Continuous model evaluation with BigQuery ML, Stored Procedures, and Cloud Scheduler

More resources

If you’d like to learn more about any of the topics covered in this post, check out these resources:

Or learn more about how you can use BigQuery ML to easily build other machine learning solutions:

Let us know what you thought of this post, and if you have topics you’d like to see covered in the future! You can find us on Twitter at @polonglin and @_mkazi_.Thanks to reviewers: Abhishek Kashyap, Breen Baker, David Sabater Dinter.

2985

Of your peers have already watched this video.

17:30 Minutes

The most insightful time you'll spend today!

Case Study

Signal Generation in the Investment Management Industry

Machine learning is seeing a lot of use cases in the financial sector. One of them is leverage AI to sift signal from noise and create insights or predictions that can give financial planners an edge.

In this video, David Li, Head of Advanced Analytics, BlackRock and Colman Madden, Customer Engineer, Google Cloud, present on how BlackRock leverages NLP on Google Cloud to search for signals in the investment management industry.

“We analyze large volumes of textual news via NLP to classify text into sentiment scores as well as other metrics such as news volume and emotions in these articles,” says David Li.

He also discusses some of the challenges they faced, and the solutions they found, and why they selected Google Cloud to run this project.

Blog

Telehealth Improves Patient and Clinical Experiences across Continuum of Care

4892

Of your peers have already read this article.

1:30 Minutes

The most insightful time you'll spend today!

The future of healthcare includes cloud technologies like EHR-integrated telehealth platforms combined with AI, healthcare-trained virtual agents and in-person care. Telehealth's transformative shift will impact patient outcomes and experiences!

According to a National Academy of Medicine discussion paper, social determinants of health (SDoH) account for upwards of 80% of a population’s health outcomes. Breaking this down further, 50% come just from socioeconomic and physical environment factors such as education, employment, income, family and social support, community safety, air and water quality, and access to housing and transit. SDoH determine access to and quality of healthcare, and are contributors to a system of disparate access to care.

Social Determinants of Health 101.jpg
Click to enlarge

We believe that to more efficiently provide comprehensive healthcare access to more people, providers will leverage technology to blend in-person and virtual modes of care delivery.

In this article, Amwell and Google Cloud examine five ways telehealth – as part of a provider’s overall care model – can help democratize access to healthcare. (graphic url)

Remove distance as a barrier to care

8.6 million Americans live more than 30 minutes from their nearest hospital. Long drives can deter patients from seeking care or maintaining routine visits. On the flip side, 92% of Americans nationwide have access to wired broadband in the home or through mobile broadband. Therefore, having a virtual visit just a click away can help remove barriers to care, like distance.

Eliminate the risk of unnecessary exposure

Virtual care means that patients don’t have to worry about potential exposure in transit, while sitting in waiting rooms, or from direct interactions during in-person health visits. This is particularly relevant when it comes to those with chronic diseases or underlying conditions. Telehealth provides patients who may be more susceptible to diseases with access to continuous healthcare without putting them at higher risk for developing more severe symptoms. Virtual visits can occur in the comfort –and safety– of patients’ homes.

Extend access to specialized care

55% of preventable hospitalization or mortality in rural settings is due to lack of access to specialty care. With telehealth, physical proximity to specialized services–typically in urban areas–can be reduced as a limiting factor. Virtual solutions grant everyone access to top specialists, regardless of location.

Save time and money

By augmenting in-person visits with telehealth applications, providers can benefit from greater efficiencies in scheduling, helping to improve their bottom line, and add more flexibility to their workday. Meanwhile, patients can spend less on travel and childcare, limit time taken off work, and save on other costs associated with in-person visits — for a savings of $35 to $690 per visit. In a survey by the COVID-19 Healthcare Coalition, 76% of the 2,000+ patients surveyed across the US responded that transportation was removed as a barrier, 65% reported they no longer had to take time off from work for an appointment, and 67 percent reporting lower costs than an in-person visit.

Combat physician shortage and fatigue

Research shows there will be a shortage of more than 100,000 doctors by 2030. In the midst of a physician shortage, telehealth can help improve care delivery and make it more efficient, ensuring more people can still have their healthcare needs addressed. Additionally, by integrating intelligence such as case triaging along with telehealth into a virtual care model, providers can help reduce clinician burnout.

Amwell and Google Cloud are partnering to deliver transformative telehealth solutions that will make it easier for more patients to receive care and improve patient and clinician experiences across the continuum of care. One example includes embedding real-time captioning and translation services powered by Google Cloud’s AI and NLP technologies within the Amwell platform to increase health access and understanding for more people.

As physicians, we are excited that the future of healthcare will continue to blend cloud technologies like EHR-integrated telehealth platforms, AI, healthcare-trained virtual agents along with in-person care to create an integrated hybrid care model that will improve patient outcomes and unburden providers, all while expanding access to broader patient populations.

To learn more, download the whitepaper “Healthcare’s Virtual Transformation,” written in conjunction with Becker’s Hospital Review.

1: “Social Determinants of Health 101 for Health Care: Five Plus Five,” National Academy of Medicine, October 2017

Webinar

Google Cloud Next 21 for Data Analytics Unplugged

4933

Of your peers have already read this article.

4:30 Minutes

The most insightful time you'll spend today!

The Google Cloud Next 2021 was concluded on October 23rd along with a keynote by the CEO, Thomas Kurian. To catch up the quick recap on the event covering all the developments in the Google Cloud Data Analytics portfolio.

October 23rd (this past Saturday!) was my 4th Googlevarsery and we are wrapping an incredible Google Next 2021!

When I started in 2017, we had a dream of making BigQuery Intelligent Data Warehouse that would power every organization’s data driven digital transformation.

This year at Next, It was amazing to see Google Cloud’s CEO, Thomas Kurian, kick off his keynote with CTO of WalMart, Suresh Kumar , talking about how his organization is giving its data the “BigQuery treatment”.

1 da next roll up.jpg

AS  I recap Next 2021 and  reflect on our amazing journey over the past 4 years, I’m so proud of the opportunity I’ve had to work with some of the world’s most innovative companies from Twitter to Walmart to Home Depot, Snap, Paypal and many others.

So much of what we announced at Next is the result of years of hard work, persistence and commitment to delivering the best analytics experience for customers.

I believe that one of the reasons why customers choose Google for data is because we have shown a strong alignment between our strategy and theirs and because we’ve been relentlessly delivering innovation at the speed they require.

Unified Smart Analytics Platform

Over the past 4 years our focus has been to build industries leading unified smart analytics platforms. BigQuery is at the heart of this vision and seamlessly integrates with all our other services. Customers can use BigQuery to query data in BigQuery Storage, Google Cloud Storage, AWS S3, Azure Blobstore, various databases like BigTable, Spanner, Cloud SQL etc. They can also use  any engine like Spark, Dataflow, Vertex AI with BigQuery. BigQuery automatically syncs all its metadata with Data Catalog and users can then run a Data Loss Prevention service to identify sensitive data and tag it. These tags can then be used to create access policies.

In addition to Google services, all our partner products also integrate with BigQuery seamlessly. Some of the key partners highlighted at Next 21 included Data Ingestion (Fivetran, Informatica & Confluent), Data preparation (Trifacta, DBT),  Data Governance (Colibra), Data Science (Databricks, Dataiku) and BI (Tableau, PowerBI, Qlik etc).

2 da next roll up.jpg

Planet Scale analytics with BigQuery

BigQuery is an amazing platform and over the past 11 years we have continued to innovate in various aspects. Scalability has always been a huge differentiator for BigQuery. BigQuery has many customers with more than 100 petabytes of data and our largest customer is now approaching  an exabyte of data. Our large customers have run queries over trillions of rows.

But scale for us is not just about storing or processing a lot of data. Scale is also how we can reach every organization in the world. This is the reason we launched BigQuery Sandbox which enables organizations to get started with BigQuery without a credit card. This has enabled us to reach tens of thousands of customers. Additionally to make it easy to get started with BigQuery we have built integrations with various Google tools like Firebase, Google Ads, Google Analytics 360, etc.

Finally, to simplify adoption we now provide options for customers to choose whether they would like to pay per query, buy flat rate subscriptions or buy per second capacity. With our autoscaling capabilities we can provide customers best value by mixing flat rate subscription discounts with auto scaling with flex slots.

3 da next roll up.jpg

Intelligent Data Warehouse to empower every data analyst to become a data scientist

BigQuery ML is one of the  biggest innovations that we have brought to market over the past few years. Our vision is to make every data analyst a data scientist by democratizing Machine learning. 80% of time is spent in moving, prepping and transforming data for the ML platform. This also causes a huge data governance problem as now every data scientist has a copy of your most valuable data.  Our approach was very simple.  We asked:”what if we could bring ML to data rather than taking data to an ML engine?”

That is how BigQuery ML was born. Simply write 2 lines of SQL code and create ML models.

Over the past 4 years we have launched many models like regression, matrix factorization, anomaly detection, time series, XGboost, DNN etc. These  models are used by customers to solve complex  business problems simply from segmentation, recommendations, time series forecasting, package delivery estimation etc. The service is very popular: 80%+ of our top customers are using BigQueryML today.  When you consider that the average adoption rate of ML/AI is in the low 30%, 80% is a pretty good result!

4 da next roll up.gif

We announced tighter integration of BQML with Vertex AI. Model explainability will provide the ability to explain the results of predictive ML classification and regression models by understanding how each feature contributes to the predicted result. Also users will be able to manage, compare and deploy BigQuery ML models in Vertex; leverage Vertex Pipelines to train and predict BigQuery ML models.

Real-time streaming analytics with BigQuery

Customer expectations are changing and everyone wants everything in an instant: according to Gartner, by the end of 2024, 75% of enterprises will shift from piloting to operationalizing AI, driving a 5X increase in streaming data and analytics infrastructures.

The BigQuery’s storage engine is optimized for real-time streaming. BigQuery supports streaming ingestion of 10s of millions of events in real-time and there is no impact on query performance. Additionally customers  can use materialized views and BI Engine (which is now GA) on top of streaming data. We guarantee always fast, always fresh data. Our system automatically updates MVs and BI Engine.

Many customers also use our PubSub service to collect real-time events and process these through Dataflow prior to ingesting into BigQuery. This is a streaming ETL pattern which is very popular. Last year,we announced PubSub Lite to  provide customers with a 90% lower price point and aTCO that is lower than any DIY Kafka deployment.

We also announced Dataflow Prime, it is our next generation platform for Dataflow. Big Data processing platforms have only focused on horizontal scaling to optimize workloads. But we have seen new patterns and use cases like streaming AI where you may have a few steps in pipelines that perform data prep and then customers  have to run a GPU based model. Customers  want to use different sizes and shapes of machines to run these pipelines in the most optimum manner. This is exactly what Dataflow Prime does. It delivers vertical auto scaling with the right fitting for your pipelines. We believe this should lower costs for pipelines significantly.

5 da next roll up.jpg

With Datastream as our change data capture service (built on Alooma technology), we have solved the last key problem space for customers. We can automatically detect changes in your operational databases like MySQL, Postgres, Oracle etc and sync them in BigQuery.

Most importantly, all these products work seamlessly with each other through a set of templates. Our goal is to make this even more seamless over next year.

Open Data Analytics with BigQuery

Google has always been a big believer in Open Source initiatives. Our customers love using various open source offerings like Spark, Flink, Presto, Airflow etc. With Dataproc & Composer our customers have been able to run various of these open source frameworks on GCP and leverage our scale, speed and security. Dataproc is a great service and delivers massive savings to customers moving from on-prem Hadoop environments. But customers want to focus on jobs and not clusters.

That’s why we launched Dataproc Serverless Spark (GA) offering at Next 2021. This new service adheres to one of our key design principles we started with: make data simple.

Just like with BigQuery, you can simply RUN QUERY. With Spark on Google Cloud, you simply RUN JOB.  ZDNet did a great piece on this.  I invite you to check it out!

Many of our customers are moving to Kubernetes and wanted to use that as the platform for Spark. Our upcoming Spark on GKE offering will give the ability to deploy spark workloads on existing Kubernetes clusters.

But for me the most exciting capability we have is, the ability to run Spark directly on BigQuery Storage. BigQuery storage is highly optimized analytical storage. By running Spark directly on it, we again bring compute to data and avoid moving data to compute.

BigSearch to power Log Analytics

We are bringing the power of Search to BigQuery. Customers already ingest massive amounts of log data into BigQuery and perform analytics on it. Our customers have been asking us for better support for native JSON and Search. At Next 21 we announced the upcoming availability of both these capabilities.

6 da next roll up.jpg

Fast cross column search will provide efficient indexing of structured, semi-structured and unstructured data. User friendly SQL functions let customers rapidly find data points without having to scan all the text in your table or even know which column the data resides in.

This will be tightly integrated with native JSON, allowing customers to get BigQuery performance and storage optimizations on JSON as well as search on unstructured or constantly changing  data structures.

Multi & Cross Cloud Analytics

Research on multi cloud adoption is unequivocal — 92% of businesses in 2021 report having a multi cloud strategy. We have always believed in providing customers choice to our customers and meeting them where they are. It was clear that all our customers wanted us to take our gems like BigQuery to other clouds as their data was distributed on different clouds.

Additionally it was clear that customers wanted cross cloud analytics not multi-cloud solutions that can just run in different clouds. In short, see all their data with a single pane of glass, perform analysis on top of any data without worrying about where it is located, avoid egress costs and finally perform cross cloud analysis across datasets on different clouds.

7 da next roll up.jpg

With BigQuery Omni, we deliver on this vision, with a new way of analyzing data stored in multiple public clouds.  Unlike competitors, BigQuery Omni does not create silos across different clouds. BigQUery provides a single control plane that shows an analyst all data they have access to across all clouds. Analyst just writes the query and we send it to the right cloud across AWS, Azure or GCP to execute it locally. Hence no egress costs are incurred.

We announced BQ Omni GA for both AWS and Azure at Google Next 21 and I’m really proud of the team for delivering on this vision.  Check out Vidya’s session and learn from Johnson and Johnson how they innovate in a multi-cloud world.

Geospatial Analytics with BigQuery and Earth Engine

We have partnered with our Google Geospatial team to deliver GIS functionality inside BigQuery over the years. At Next we announced that customers will be able to integrate Earth Engine with BigQuery, Google Cloud’s ML technologies, and Google Maps Platform.

Think about all the scenarios and use-cases your team’s going to be able to enable sustainable sourcing, saving energy or understanding business risks.

8 da next roll up.jpg

We’re integrating the best of Google and Google Cloud together to – again – make it easier to work with data to create a sustainable future for our planet.

BigQuery as a Data Exchange & Sharing Platform

BigQuery was built to be a sharing platform. Today we have 3000+ organizations sharing more than 250 petabytes of data across organizations. Google also brings more than 150 public datasets to be used across various use cases. In addition to this, we are also bringing some of the most unique datasets like Google Trends to BigQuery. This will enable organizations to understand in real-time trends and apply to their business problems.

9 da next roll up.jpg

I am super excited about the Analytics Hub Preview announcement. Analytics Hub will provide the ability for organizations to build private and public analytics exchanges. This will include data, insights, ML Models and visualizations. This is built on top of the industry leading security capabilities of BigQuery.

10 da next roll up.jpg

Breaking Data Silos

Data is distributed across various systems in the organization and making it easy to break the data silo and make all this data accessible to all is critical. I’m also particularly excited about the Migration Factory we’re building with Informatica and the work we are doing for data movement, intelligent data wrangling with players like Trifacta and FiveTran, with whom we share over 1,000 customers (and growing!).  Additionally we continue to deliver native Google service to help our customers.

We acquired Cask in 2018 and launched our self service Data Integration service in Data Fusion. Now Fusion allows customers to create complex pipelines with just simple drag and drop. This year we focused on unlocking SAP data for our customers. We have launched various SAP connectors and accelerators to achieve this.

11 da next roll up.jpg

At GCP Next we also announced our BigQuery Migration service in preview. Many of our customers are migrating their legacy data warehouses and data lakes to BigQuery. BigQuery Migration Service provides end-to-end tools to simplify migrations for these customers.

And today, to make migrations to BigQuery easier for even more customers, I am super excited to announce the acquisition of CompilerWorks. CompilerWorks’ Transpiler is designed from the ground up to facilitate SQL migration in the real world and will help our customers accelerate their migrations. It supports migrations from over 10 legacy enterprises data warehouses and we will be making it available as part of our BigQuery Migration service in the coming months.

Data Democratization with BigQuery

Over the past 4 years we have focused a lot on making it very  easy to derive actionable insights from data in BigQuery. Our priority has been to provide a strong ecosystem of partners that can provide you with great tools to achieve this but also deliver native Google capabilities.

With our BI engine GA announcement which we introduced in 2019, previewed earlier this year and showcased with tools like Microsoft PowerBI and Tableau, is now available for all to play with.

12 da next roll up.jpg

BigQuery + Data Studio are like peanut butter and Jelly. They just work well together. We launched BI Engine first with Data Studio and scaled it to all the users. More than 40% of our BigQuery customers use Data Studio. Once we knew BI Engine works extremely well we now have made it an integral part of BigQuery API and launched it for all our internal and partner BI tools.

We announced GA for BI Engine at Next 2021 but we were already GA with Data Studio for the past 2 years. We recently moved the Data Studio team back into Google Cloud making the partnership even stronger. If you have not used Data Studio, I encourage you to take a look and get started for free today here!!

Connected Sheets for BigQuery is one of my favorite combinations. You can give every business user in your organization the ability to analyze billions of records using standard Google Sheets experience. I personally use it everyday to analyze all our product data.

We acquired Looker in Feb 2020 with a vision of providing a semantic modeling layer to our customers with a governed BI solution. Looker is tightly integrated with BigQuery including BigQuery ML. Our latest partnership with Tableau where Tableau customers will soon be able to leverage Looker’s semantic model, enabling new levels of data governance while democratizing access to data.

Finally, I have a dream that one day we will bring Google Assistant to your enterprise data. This is the vision of Data QnA. We are in early innings on this and we will continue to work hard to make this vision a reality.

Intelligent Data Fabric to unify the platform

Another important trend that shaped our market is the Data Mesh.  Earlier this year, Starburst invited me to talk about this very topic. We have been working for years on this concept, and although we would love for all data to be neatly organized in one place, we know that our customers’ reality is that it is not (If you want to know more about this, read about my debate on this topic with Fivetran’s George Fraser, a16z’s Martin Casado and Databricks’ Ali Ghodsi).

Everything I’ve learned from customers over my years in this field is that they don’t just need a data catalog or a set of data quality and governance tools, they need an intelligent data fabric.  That is why we created Dataplex, whose general availability we announced at Next.

13 da next roll up.jpg

Dataplex enables customers to centrally manage, monitor, and govern data across data lakes, data warehouses, and data marts, while also ensuring data is securely accessible to a variety of analytics and data science tools.  It lets customers organize and manage data in a way that makes sense for their business, without data movement or duplication. It provides logical constructs – lakes, data zones, and assets – which enable customers to abstract away the underlying storage systems to build a foundation for setting policies around data access, security, lifecycle management, and so on.  Check out Prajakta Damle’s session and learn from Deutsche Bank how they are thinking about a unified data mesh across distributed data.

Closing Thoughts

Analysts have recognized our momentum and, as I look back at this year, I couldn’t thank our customers and partners enough for the support they provided my team and I across our large Data Analytics portfolio: in March, Google BigQuery was named a Leader in The Forrester Wave™: Cloud Data Warehouse, Q1 2021.  And in June, Dataflow was named a Leader in The Forrester Wave™: Streaming Analytics, Q2 2021 report.

If you want to get a taste for why customers choose us over other hyperscalers or cloud data warehousing, I suggest you watch the Data Journey series we’ve just launched, which documents the stories of organizations modernizing to the cloud with us.

14 da next roll up.jpg

The Google Cloud Data Analytics portfolio has become a leading force in the industry and I couldn’t be more excited to have been part of it.  I do miss you, my customers and partners, and I’m frankly bummed that we didn’t get to meet in person like we’ve done so many times before (see a photo of my last in-person talk before the pandemic), but this Google Next was extra special, so let’s dive into the product innovation and their themes.

I hope that I will get to see you in person next time we run Google Next!

Case Study

How 20th Century Fox Uses Machine Learning to Gauge the Financial Performance of a Movie

DOWNLOAD CASE STUDY

5872

Of your peers have already downloaded this article

4:15 Minutes

The most insightful time you'll spend today!

Success in the movie industry relies on a studio’s ability to attract moviegoers—but that’s sometimes easier said than done.

Moviegoers are a diverse group, with a wide variety of interests and preferences. Historically, movie studios have relied heavily on experience when deciding to invest in a particular script—but this can lead to huge risks, particularly when investing in new, original stories.

The iterative and complex process of matching stories and audiences is something that Julie Rieger, President, Chief Data Strategist and Head of Media, and Miguel Campo-Rembado, SVP of Data Science, together with their team of data scientists at 20th Century Fox, decided to clarify with data.

Together, Google Cloud and 20th Century Fox have built privacy-robust data partnerships to better understand moviegoers, and have developed in-house deep learning models that train on granular customer data and movie scripts to identify the basic patterns in audiences’ preferences for different types of films.

In 18 months, these models have become routine considerations for important business decisions, and provide one of their most objective, data-driven, and effective barometers to evaluate the tone of a movie, its affinity with core and stretch audiences, and its potential financial performance.

Find how machine learning helped achieve this (clue: it used movie trailers). Download the case study.

Blog

UKG Ready: Meeting the Needs of Complex Machine Learning Models and Distributed Data Sets

3954

Of your peers have already read this article.

2:30 Minutes

The most insightful time you'll spend today!

UKG Ready, an HR software for smaller teams, wanted to help SMBs get the variety of data needed to create a dynamic and agile organization. Read to know how Google Cloud Services helped build a common vocabulary of customers’ business entities.

Business Problem
UKG Ready primarily operates in the Small and Medium Business (SMB) space, so inherently many customers are forced to operate and make key business decisions with less Workforce Management (WFM) / Human Capital Management (HCM) data. In addition to volume, SMB lacks the variety of data needed to create a dynamic and agile organization. This puts SMB at a major disadvantage compared to larger segments.

Project Goals
People Insights module is committed to surfacing insights to customers in the context of their day-to-day duties and aid in decision making. With the SMB customer data limitations mentioned above, the goal of this project was to create a global dataset that augments individual customer data to bring light to less obvious, yet important information.

Challenges
UKG Ready is a highly configurable application that gives customers the opportunity to build solutions on a platform that meets their specific business needs. High configurability gives high flexibility to customers in their usage of the software. However, it becomes nearly impossible to create a global dataset for machine learning and data insights. UKG Ready manages just under 4 million of the US workforce and some 30,000+ customers. Despite the large employee dataset size, machine learning models that are specific to customers are starved for data because the individual customers have a relatively small employee population. Does that mean we cannot support our SMB customers’ decision making with ML?

Result
Partnering with Google, we were able to develop an approach that allowed us to standardize various domain entities (pay categories, time off codes, job titles, etc.) so that we could build a global dataset to augment SMB customer data. Using machine learning we were able to build a common vocabulary across our customer base. This common vocabulary encapsulates the nuances of how our customers manage their business and yet is generalized and standardized such that the data can be aggregated over the variety of customer configurations. This allows us to serve up practical insights to customers through various use cases. Our partnership allowed us to leverage Google Cloud Services to meet the needs of our complex machine learning models, distributed data sets and CI/CD processes.

How
UKG Ready decided to partner with Google for an end-to-end solution for the analytics offering. This allowed us to focus on our core business logic without having to worry about the platform, environment configurations, performance and scalability of the entire solution. We make use of various Google Cloud services such as Cloud Triggers, Cloud Storage, Cloud Functions, Cloud Composer, Cloud Dataflow, Big Query, Vertex AI, Cloud Pub/Sub… to host our analytics solution. Jenkins manages the entire CI/CD pipelines and cloud environments are configured and deployed using Terraform.

The standardization of business entities problem was solved in three distinct steps:

Step 1: Collecting aggregated data
We needed an approach to collect aggregated data from our highly distributed, sharded, multi-tenant data sources. We developed a custom solution that allows us to extract data aggregated at source for PII and GDPR considerations and transfer to Google Cloud Storage in the fastest manner possible. Data is then transformed and stored in Big Query. Services used: GCS, Cloud Functions, DataFlow, Cloud Composer and Big Query. All processes are orchestrated using Cloud Composer and detailed logging is available in Cloud Logging (Stackdriver).

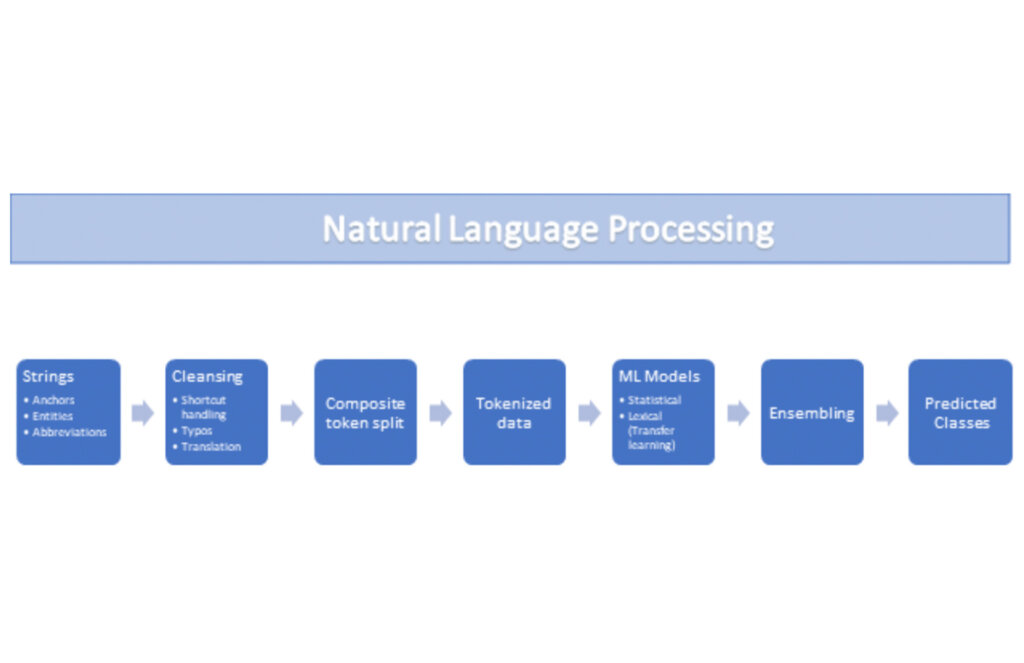

Step 2: Applying NLP (Natural Language Processing)
Once we had the variety of customer configurations or the business entities available, we then applied NLP algorithms to categorize and standardize these in buckets. This approach assumes that customers use natural language for configurations like job titles, pay codes etc.

String Preparation
The input data for string preparation process is an entity string or several strings, that describe one entity object (like name-description pair or code-name pair). The output represents set of tokens that may be used to run a classification/clustering model. The process of string preparation tokenizes strings, replaces shortcuts, handles abbreviations, translates tokens, handles grammatical errors and mistypes

ML Models

Statistical
The idea of the model is to use defined target classes (clusters) and assign several tokens (anchors) to each of them an entity that has any of those tokens would be “attracted” to appropriate class. All other tokens are weighted according to frequencies of usage of theses tokens in the entities with anchor tokens:

Using anchor tokens, we are building kind-of Word2Vec - dimensionality of vector is equal to number of target classes. The higher the specific dimension (cluster) value, the higher the probability of entity to be included in appropriate cluster. Final prediction for entity tokens list for specific class is sum of weights of all the tokens included. Predicted cluster is a cluster that has maximal prediction score.

Lexical Model
We managed to generate reasonable amount of labeled data during statistical model implementation and testing. That opens a possibility to build “classical” NLP model that uses labeled data to train classification neural network using pretrained layers to produce token embeddings or even string embeddings. We started experimentation with pre-trained models like GloVe and got good results with single words and bi-grams but started getting issues in handling of n-grams. Our Google account team came to our rescue and recommended some white papers that helped formulate our strategy. We now use Tensorflow nnlm-en-dim128 model to produce string embeddings – it was trained on 200B records English Google News corpus and produces for each input string 128-dimensional vector. After that we use several Dense and Dropout layers to build a classification model.

Ensembling
To perform ensembling all the model results for each class are cast to probabilities using softmax transformation with scale normalization. Final predicted probability is maximal average score of both models among all the classes scores – appropriate class is predicted class.

The machine learning models are deployed on Vertex AI and are used in batch predictions. Model performance is captured at every prediction boundary and monitored for quality in production.

Step 3: Making available common vocabulary

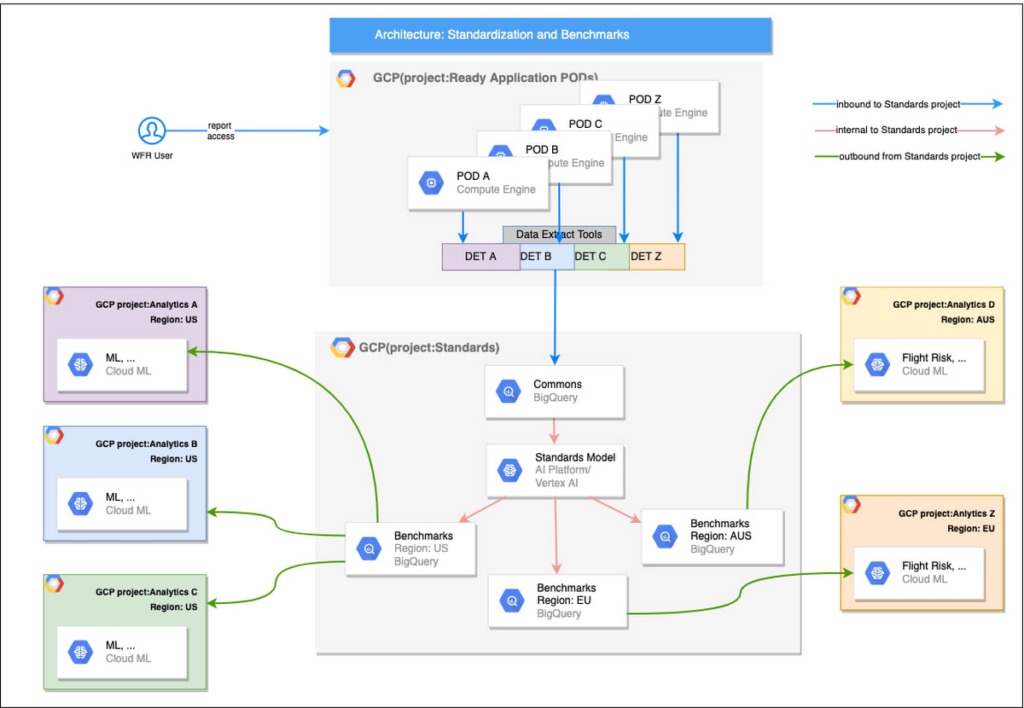

Having the standardized vocabulary, we then needed a mechanism to have the results be available in UKG Ready reports and customer specific models like Flight Risk and Fatigue. For this we again used Google Services for orchestration, data transformation and data storage.

Once the modeling is complete, we made the customer specific models leveraging the above architecture be available in Reports. We utilized our proven existing technology choices in GCP for orchestration, data transformation and data storage

Results
We are able to build a common vocabulary of our customers’ business entities with good confidence. And be an expert advisor to our SMB customers in their decision-making using machine learning. With the advice of our Google account team and using Google services we can add value to our product in a relatively short amount of time. And we are not done! We continue to use this platform for new use cases, complex business problems and innovative machine learning solutions.

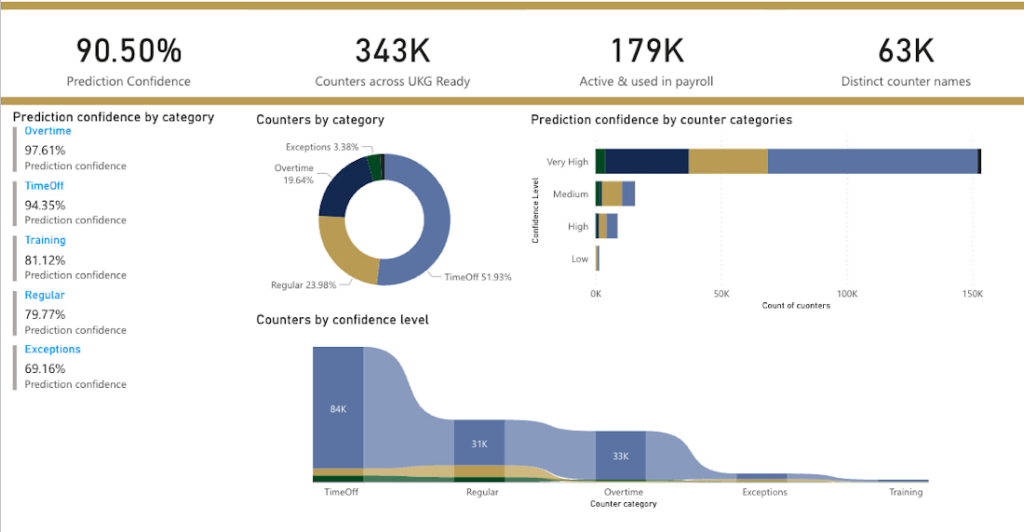

Sample result:


Special thanks to Kanchana Patlolla , AI Specialist, Google for the collaboration in bringing this to light

More Relevant Stories for Your Company

Webinar

The Secret to Accelerated ML Model Training

As an infrastructure or a data science professional, it’s more critical than ever to keep abreast of the changes taking place to the infrastructure powering machine learning. If we take a step back, we will realize that there’s been a tremendous amount of progress in machine learning in the last

31% of CIOs say they have already deployed conversational AI platforms.  This represents a 50% year on year growth.

Blog

Enabling Real-time AI with Streaming Ingestion in Vertex AI

Many machine learning (ML) use cases, like fraud detection, ad targeting, and recommendation engines, require near real-time predictions. The performance of these predictions is heavily dependent on access to the most up-to-date data, with delays of even a few seconds making all the difference. But it’s difficult to set up

“With a minimal number of people involved, we can very quickly transform an idea or thought process into a deliverable. Prior to Google Cloud Platform, bringing those ideas to fruition would have been impossible.” -Nikunj Shanti, Chief Data and Digital Officer, AirAsia

How-to

Learn Modern App Development Practices to Ship Software Faster

Cloud-native, Kubernetes, Serverless have been the hottest and most widely discussed topics given the velocity and agility benefits. Learn more about how you can leverage these modern app development practices to ship software faster, while reducing costs and improving security and compliance. Learn how Google Cloud lets you modernize existing

Blog

Start Delivering Business Results with the Three AI Agents

When it comes to the adoption of artificial intelligence (AI), we have reached a tipping point. Technologies that were once accessible to only a few are now broadly available. This has led to an explosion in AI investment. However, according to research firm McKinsey, for AI to make a sizable

SHOW MORE STORIES

We use cookies to improve your experience. You accept to receive communications from GetIT Comms.   |   Cookie Policy

Got It
